Tuesday 13 November 2012

Heritage Building: Driving the Design with Detailing (Part Three: The Castle Kitchen)

 My colleague and friend Richard Vaughan and I designed the 'Castle Kitchen'. It was a time of intense analysis and joyful resolution of mixing old and new.

Here are a couple of the elements:

A stainless steel pot hanging frame over the stove was designed to be strong enough to carry a substantial number of pots and utensils. See top left of the photo and detail below.



An appliance cupboard and built in steamer was designed so that the heavy appliances could remain on the bench behind a slotted timber tambor, expertly crafted by Richard. The stainless steel hanging frame detail was repeated over the tambor, to be extra 'castle like'.






Wednesday 7 November 2012

Heritage Building: Driving the Design with Detailing (Part Two: Concealed sliding door)

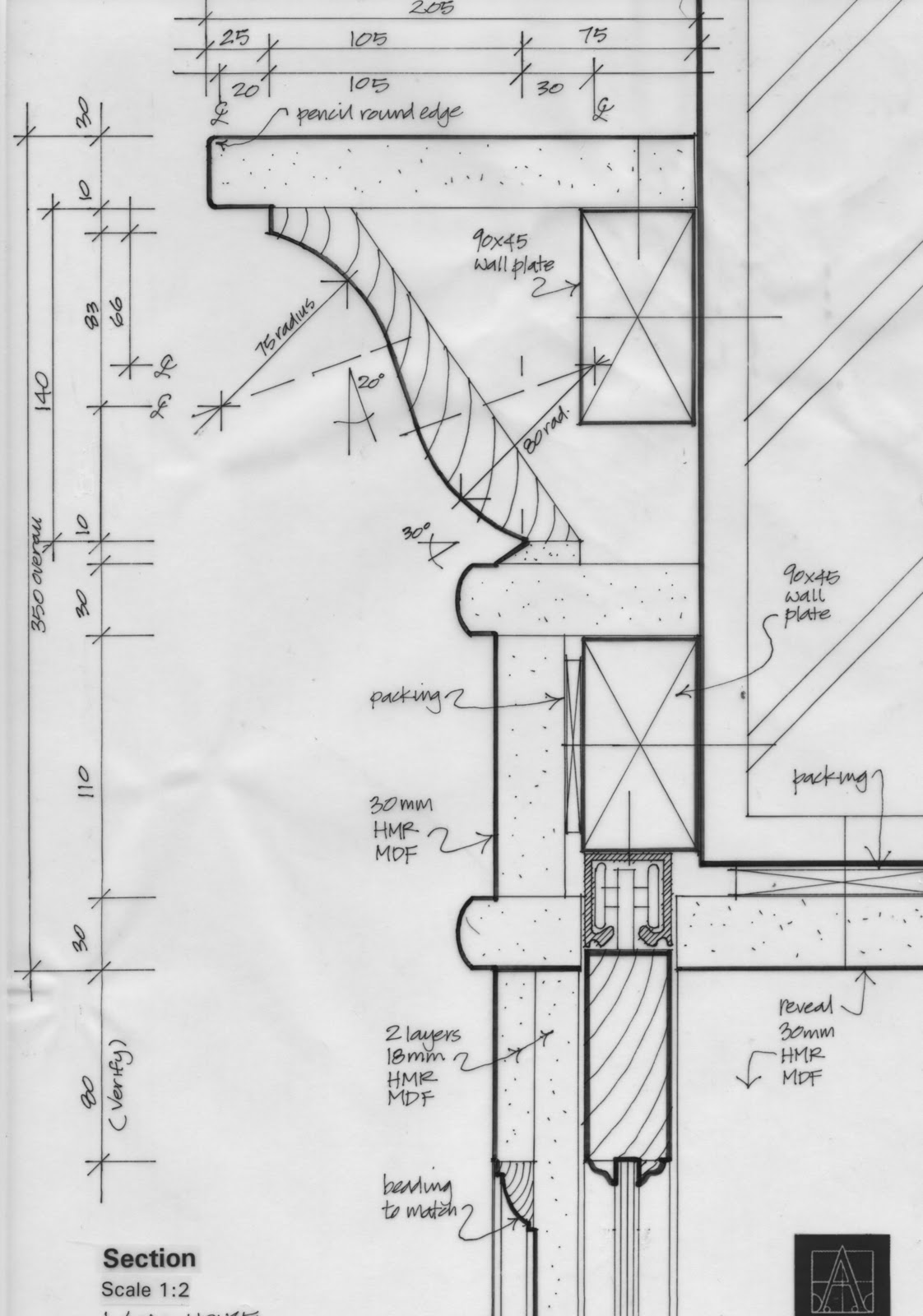

This is a 'how to' detail for retrofitting a sliding glass door over an existing wall opening so that it appears to slide in the wall.


Because it is a heritage listed Castle, the detailing was sculptured with an historic pelmet and a paneled wall appearance. Cool concealed elements are always fun in a mysterious castle...


next time: castle kitchen design...

Monday 5 November 2012

Heritage Building: Driving the Design with Detailing (Part One: Big Dining Room Door)

A new opening in a thick castle wall called for a tall order door. We had already decided to make the skirting extra high, which meant extra thick (36mm). So I could use the existing door architrave profile (19mm thick), the 40 x 55mm 'archtrave plant' was added. The door and surrounds were made from a piece of found Dorrigo Forest Cedar.

The finished door is to the right of this photo. Everything you see in this photo (except the loose furniture) was renewed and redesigned.

next time: detailing the glass sliding door...
